POLLUTION CONTROL LEGISLATION ::

PPG27 Installation, Decommissioning and removal of underground storage tanks PPG27. pdf file

Groundwater Protection Code Petrol stations and other fuel dispensing facilities involving underground storage tanks. web page


Tank Lash Details 1137KB
Early Underground Cylindrical Tanks SINGLE SKINNED UNDER GROUND CYLINDRICAL TANKS ::
  • Design BS 799 Part 5 type J 1987 and BS 2594 1975.
  • Tank ranges from 1 000 litre to 120,000 litres.
Site - Various. Use - Petrol and Diesel.

Top of Page


LEFT - 40,000 LITRE BUNDED VERTICAL CYLINDRICAL STORAGE TANKS ::
  • Design BS799 part 5 type G: 1987
  • 2.5m dia x 9.15m high
  • Dry Weight 7.5 Ton Wet Weight 42 Ton.


Skin holds 110% of tank with access in from the roof via lockable hatch to 600mm dia raised manway.Tank fitted fill point cabinet for housing gauge and alarm.

Site - Tarmac Ltd., Exeter Asphalt, Exeter, Devon

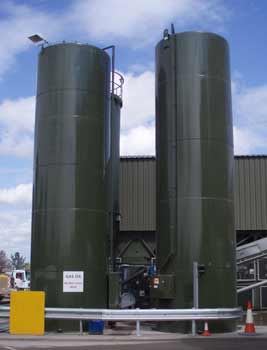

40,000 Litre Bunded Vertical Cylindrical Storage tank


Top of Page


54 000 Litre Vertical Cylindrical Storage tank
LEFT - 54 000 LITRE VERTICAL CYLINDRICAL STORAGE TANK ::
  • Design BS2654 1989
  • 2.75m dia x 9.5m high
  • Dry Weight 5 Ton Wet Weight 60 Ton.

BELOW - 600MM PRESSURE MANWAY ::
  • Reinforcement ring around tank - manway
Manway for Vertical Cylindrical Storage tank

This 54 000 litre vertical cylindrical tank requires a special lattice base and reinforced manway to cope with the pressure on this vessel. These type of tanks are capable for all types of product ranging from gas oil, derv and chemical to food oils of various types.

Twin sets of lifting lugs for use by cranes to position tank vertical.

2 cranes required for loading & unloading Special Lattice Base


Top of Page


72 000 LITRE SINGLE SKINNED VERTICAL CYLINDRICAL STORAGE TANKS :
  • Design BS EN 14015.
  • 3.5m dia x 7.5m long
  • Dry Weight 5.0 Ton Wet Weight 52.6 Ton
  • Vertical ladders fitted with safety hoops - HDG finish
  • Access plateform c/w 150mm kick plate and 2 bar safety fence - HDG finish
Site - Ravenscraig. Use - Leachade.

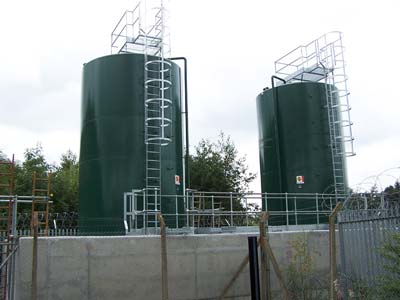

72 000 litre Vertical Cylindrical Tank

Top of Page
87 000 Litre Vertical Cylindrical Storage tank 87 000 LITRE UNDERGROUND DOUBLE SKINNED HORIZONTAL CYLINDRICAL STORAGE TANK :
  • Design BS 799 Part 5 type J 1987 and EN 12285.
  • 3.0m dia x 12.6m long
  • Dry Weight 16.5 Ton Wet Weight 99 Ton
  • Skin filled with 3:1 glycol mixture for leak detection
Site - Whittingham Hospital. Use - Stand by Generator Bulk Tank.


RIGHT - TYPICAL 600MM MANWAY AND SOCKETS :
  • Saddle fitted around manway to take access shaft.
  • Skin leak detection pipes terminate inside access shaft
Manway for Horizontal Cylindrical Storage tank

Top of Page


12 500 litre Underground Cylindrical Tank

12 500 LITRE UNDERGROUND DOUBLE SKINNED HORIZONTAL CYLINDRICAL STORAGE TANK :
  • Design BS 799 Part 5 type J 1987 and EN 12285.
  • 2.0m dia x 4.26m long
  • Dry Weight 3.2 Ton Wet Weight 15 Ton
Site - Tooting Hospital , London. Use - Standby Generator.


3 000 LITRE UNDERGROUND DOUBLE SKINNED HORIZONTAL CYLINDRICAL STORAGE TANK :
  • Design BS 799 Part 5 type J 1987 and EN12285.
  • 1.37m dia x 2.3m long
  • Dry Weight 1.4 Ton Wet Weight 4.3 Ton
  • Extended saddle around manway to facilitate larger shaft to house fuel transfer pump
Site - Wiseman House. Use - Standy Generator.
3 000 litre Underground Cylindrical Tank


Top of Page

Fibrelite Access Shaft

ACCESS CHAMBERS - SHAFTS and LIDS :

Click here for information on Fibrelite access shafts & manways to use with our undeground tanks:-

Fibrelite Access shafts and manways 720KB

Fibrelite Fixed Height Square Chamber Systems 711 kb

Fibrelite Access Cover & Frame Seal Details 223kb

Fibrelite Lift Aid for Access Covers 343kb



TANK LASH / STRAP DETAIL :

Click here for information on Tank straps to use with our undeground tanks. Tank Lash Details 1137KB

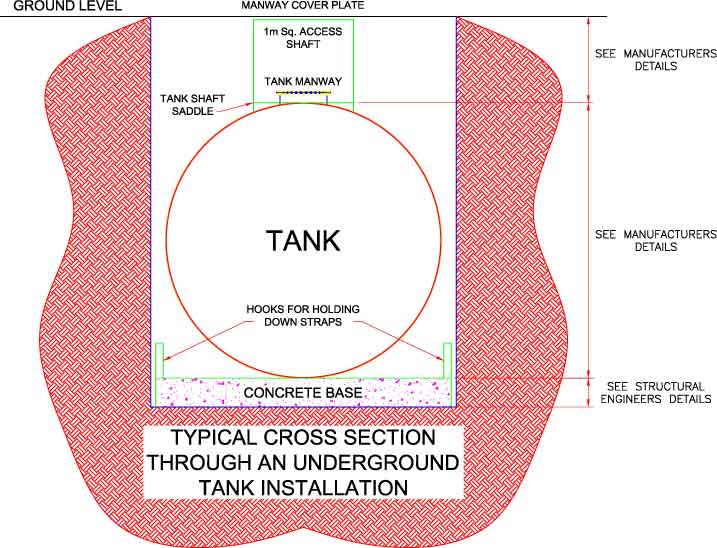

Cross Section through under ground tank


Cross Section through under ground tank

Top of Page


Port Stanley, Falkland Island Tank Farm

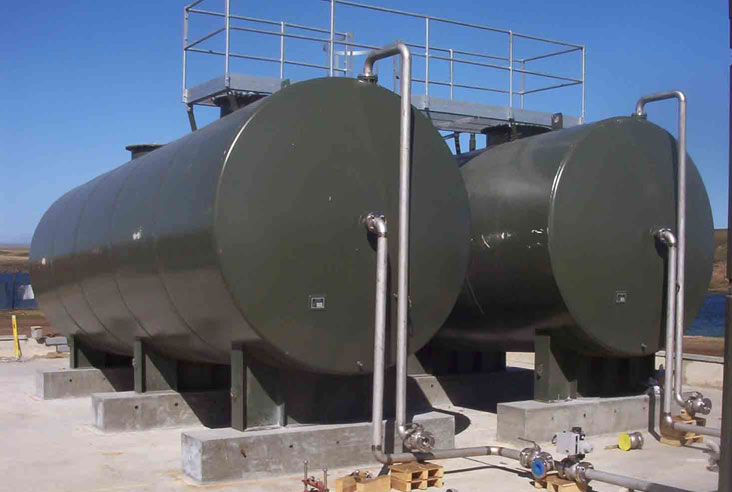

One of two tank farms consisting of 2 - 40,000 litre above ground double skinned tanks for aviation fuel. Each tank is fitting with it's own floating suction arm to draw clean fuel from the top of the tank at all times. Tank cradles are built with a 1:30 slope to the rear of the vessels. Galvanised ladders and catwalk supplied for ease of dipping and maintenance checks to each vessel.


Tank Farm Port Stanley
40 000 LITRE ABOVEGROUND DOUBLE SKINNED HORIZONTAL CYLINDRICAL STORAGE TANK :

  • Design BS 2594 and EN 12285.
  • 2.75m dia x 7.35m long
  • Dry Weight 8 Ton Wet Weight 43 Ton
  • Internal fill pipe to prevent free fall of product
  • Internal tank shot blasted SA 2.5 and expoxy coated.
  • External tank shot blasted SA 2.5 and expoxy coated.

Top of Page
