S KORONKA {MANUFACTURING} LTD

---

2 000 LITRE ENVIRONMENTAL FUEL TANK :: Design BS 799 Part 5 type J 1987. 2.2M Long x 1.25m wide x 1.25m tall Dry Weight 1.1 Ton Wet Weight 3.2Ton Total bunding of Pump, fill point and gauges minimises risk of any spillage Pump, via starter, alarm & light all wired to 110V socket 2 way valve system allows product to be pumped from tank or via external source

This unit has been design to allow for the transportation of product on the public highways. As with road tankers this unit is fitted a PPV to ensure product can not be spilled in the event of an over turn or accident. The PPV keeps the tank under pressure at all times & closes when turned upside down. Full length lifting lugs fully welded allow for the vessel to be craned or "HIAB'D" on and off vehicles. As a total contained unit and pumping station this design is ideal for take to sites for all types of maintenance work. As a completely finished item you will have no mess or fuss on site for whatever application is chosen. The hinged down door givens total security quickly and simply by the turn of a key. Ideal for unmanned and unattended sites.

3 000 LITRE ENVIRONMENTAL FUEL TANK :: Design BS 799 Part 5 type J 1987. 2.0m Long x 1.525m wide x 1.525m tall Dry Weight 1.5 Ton Wet Weight 4.3Ton Total bunding of Pump, fill point and gauges minimises risk of any spillage Fitted Fuel Transfer pump for vehicles Fitted Fuel Transfer Pump to create gravity system for boiler & return line via lock shield valve Site - Huntapac Preston. Use - Gas Oil.

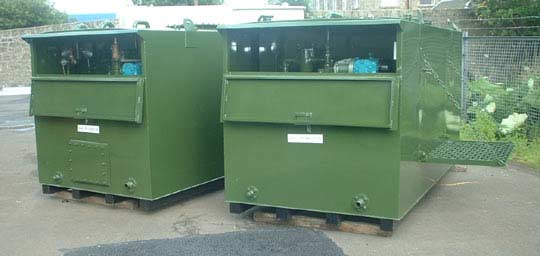

5000 LITRE ENVIRONMENTAL CLEAN AND WASTE OIL TANKS ::

Design BS 799 Part 5 type J 1987. 3.1m Long x 1.525m wide x 1.525m tall Dry Weight 1.6 Ton Wet Weight 6.3 Ton Total bunding of Pump, fill point and gauges minimises risk of any spillage

Fitted Oil Transfer pump to Engine c/w Pressure relief valve to protect pump Fitted Oil Suction Pump from Engine c/w filter prior to pump

Clean Oil Tank Pipe work                 Waste Oil Tank pouring Hatch             Waste Oil Tank Pipework

5 000 LITRE SPLIT COMPARTMENT ENVIRONMENTAL FUEL TANK :: Design BS 799 Part 5 type J 1987. 3.1m Long x 1.525m wide x 1.525m tall Dry Weight 1.8 Ton Wet Weight 6.5Ton Individual doors to fill point & pump station Internal tank split 2500 litre gas oil and 2500 litre derv Fitted individual Fuel Transfer pumps for vehicle refuelling Site - HRN Tractors-Insch.    Use - Commercial & Plant refuelling.

6 000 LITRE CLEAN AND WASTE OIL ENVIRONMENTAL FUEL TANKS :: Fitted Hose Reels

Design BS 799 Part 5 type J 1987. 3.1m Long x 1.830m wide x 1.525m tall Dry Weight 2.0 Ton Wet Weight 7.2 Ton Fitted Oil Transfer pump to Engine c/w Pressure relief valve to protect pump

Total bunding of Pump, fill point and Reels minimises risk of any spilage Fitted Oil Suction Hose from Engine and Delivery Hose to engine

13 000 LITRE ENVIRONMENTAL FUEL TANK :: Design BS 799 Part 5 type J 1987. 4.4m Long x 2.0m wide x 2.0m tall Dry Weight 3.5 Ton Wet Weight 15.8 Ton Total bunding of Pumps, fill point and     gauges minimises risk of any spilage Total Security when door shut

TOTAL BUNDING Left: - Fill Point & hand pump for emergency fill Right: - Fuel Transfer Pump to day tank

15 000 LITRE SPLIT COMPARTMENT ENVIRONMENTAL FUEL TANK :: Design BS 799 Part 5 type J 1987. 5.2m long x 2.0m wide x 2.0m tall. Dry weight 4.5 Ton - Wet Weight 19 Ton. Twin set pumping system. Allows for Gas Oil or Derv Refuelling. Tank split 5000 / 10 000 - Any combination available. Tank skid mounted to allow good ventilation under bund. Site - Scotland Transerv. Use - Refuelling stations.

CLOSE UP's

Close up of Dual Pumps.

Close up of Pump,gauge & alarm.

22 000 LITRE ENVIRONMENTAL BULK TANK FITTED TWIN SET PUMPING UNIT::

Design BS 799 Part 5 type J 1987. 6.0m long x 2.5m wide x 2.0m tall. Dry weight 7 Ton - Wet weight 27.7 Ton.

Twin Set Pumping system {Duty & Standby} installed above bund and piped to base of vessel. Build in Control Panel for Pumps, alarm and gauge. Tank skid mounted to allow good ventalation under bund.

TOTAL BUNDING Left: - Fill Point cabinet with Alarm, Gauge & L55 controller Right: - Twin Set Pumping Unit & Control Panel

TOTAL SECURITY Left: - Cables & Probes Protected Right: - Security Cover Open

50 000 LITRE ENVIRONMENTAL FUEL TANK :: Site - Hanson Aggregates - Builthwells

Design BS 799 Part 5 type J 1987. 12m Long x 3.0m wide x 2.0m tall Dry Weight 11 Ton Wet Weight 58 Ton Safety rails & access ladder for roof

Hose Reel for vehicle refueling at 100 lpm 1.5" Hose for bowser refueling 200 lpm. Tank lifts out of bund for full maintenance

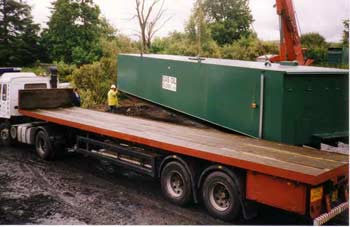

54 000 LITRE ENVIRONMENTAL FUEL TANK :: Design BS 799 Part 5 type J 1987. 12m Long x 3.0m wide x 2.0m tall Dry Weight 14 Ton Wet Weight 65 Ton Low profile to minimise visibility on sensitive locations Fitted 200 LPM Fuel Transfer pump for Bowser refueling Site - Scottish Coal OCS. Use - Bowser Refuelling.
