50 000 LITRE JET A1 TANK, FITTED PUMPING SYSTEM::

Design BS 799 Part 5 type J 1987, BS 2594 1975 and CAP 434.
13.7m long x 3.0m wide x 3.3m tall.
Dry weight 16 Ton - Wet weight 63.2 Ton.

Unit fitted inbound & out bound pump system.
Totally enclosed bund to prevent ingress of water.
Tank skid mounted to allow good ventilation under bund.

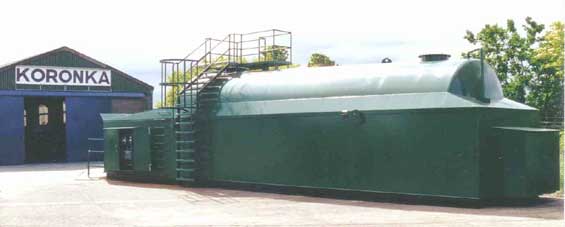

50 000 litre JET A1 Unit

SHOREHAM AIRPORT - BRIGHTON

Pump & hose reels Pump c/w filter water separator

500 lpm Filter Water Monitor

Positive Displacement Meter

25mm Hose and reel for over wing refuelling

50mm hose and reel for pressure refuelling

1 000 lpm Filter Water Seperator.

Inbound pump 1000 lpm.

PRT closed system back to inbound pump.

PRT and Pipe Work Refuelling Doors & Electrical Connection

PRT = Product Recover Tank

Hand Pump for Daily Samples piped via sample Jar

Ring main back to inbound pump

Lockable Cupboard for sample jars and charts

Split doors for inbound and out bound product.

Electric cabinet prefitted with starters etc all to ZONE 1.

Access ladder and stairs to manway for dipstick.

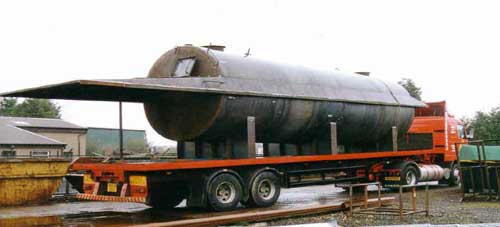

Raw Tank & Canopy

Raw vessel prior to Shotblasting

Internal of Vessel white lined - Sigma Phenguard.

Top of Page

16 000 litre Avgas Unit

16 000 LITRE AVGAS UNIT FUEL TANK ::

Design BS 799 Part 5 type J 1987, BS2594 1975 and CAP 434.
5.9m long x 3.0m wide x 2.9m tall.
Dry weight 6 Ton - Wet weight 21.1 Ton.
Unit fitted in bound & out bound pump system.
Totally enclosed bund to prevent ingress of water.

OLD SARUM AIRPORT ::
One of the oldest airports in Britain dating back to WW1 when Bi planes where flown across the channel to France.
This small landing strip required a AVGAS tank for filling light aircraft overwing.
This unit is equipped with an in bound pump via mesh filter. Out bound is via 100 lpm pump through an out bound filter and hose reel.
Prefitted with a static bonding reel to bond tank to aircraft

Pump & hose reels

Top of Page

PRT - PRODUCT RECOVERY TANK ::

Portable PRT for use anywhere, fitted castors
Stainless Steel Construction
Stainless steel mesh basket for prefiltering
Hand Pump to draw off clean product
Convenient bucket holder below to drain off debris

Top of Page

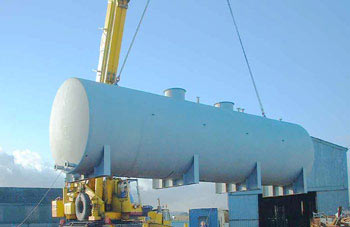

75 000 LITRE JET A1 FUEL TANK ::

Design BS 799 Part 5 type J 1987,BS 2594 1975 and CAP 434.
2.75m Dia x 13.427m Long.
Dry weight 18.5 Ton - Wet weight 90 Ton.
4 prewelded cradles and two 600mm dia manways.
Shotblasted and White lined

FARNBOROUGH AIRPORT ::
One of two units manufactured for Farnborough in the recent upgrade of their tank farm.
These large bunded units are interlinked via 3 way valves. These serve two purposes, first to balance tanks and secondly to isolate for maintenance or contamination. Tanks are manufactured with a 30:1 run as per CAP 434.
Each vessel is fitted with a floating suction arm to remove product from the top of the tank and thus prevent any dirt or water being drawn off by the pumps.
Remember there are no "Car parks in the Sky"!!!!
