BASE AND STRUCTURAL SLAB TANKS



BASE TANKS CAN BE MANUFACTURED FOR ANY SIZE OF GENERATOR.

FULLY BUNDED TO MEET ENVIRONMENT AGENCY GUIDE LINES.

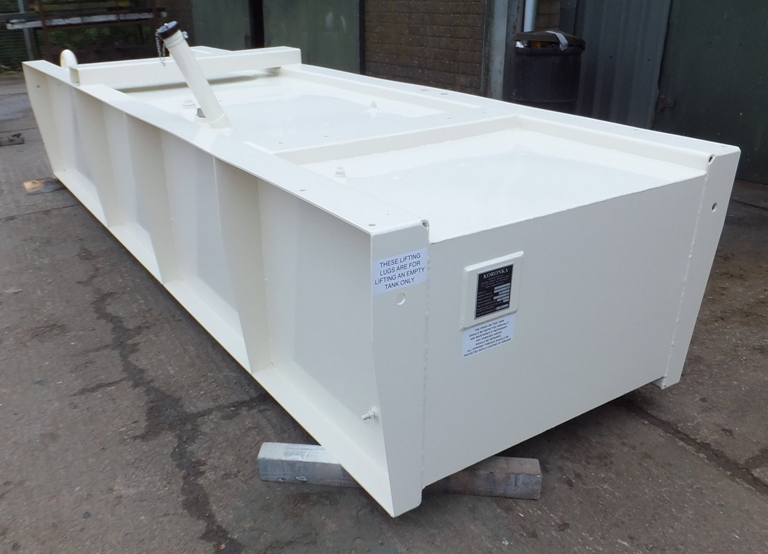

1 500 LITRE BASE TANK ::
  • Design BS 799 Part 5 type J 1987.
  • 3.7 m long x 1.11m wide x 600mm tall.
  • Dry weight 1.0 Ton - Wet Weight 2.3 Ton.
  • 6mm Side channels fitted support gussets .


Site - New Forth Road Crossing. Use - Stand By Generator.
1 500 litre Base Tank

Top of Page

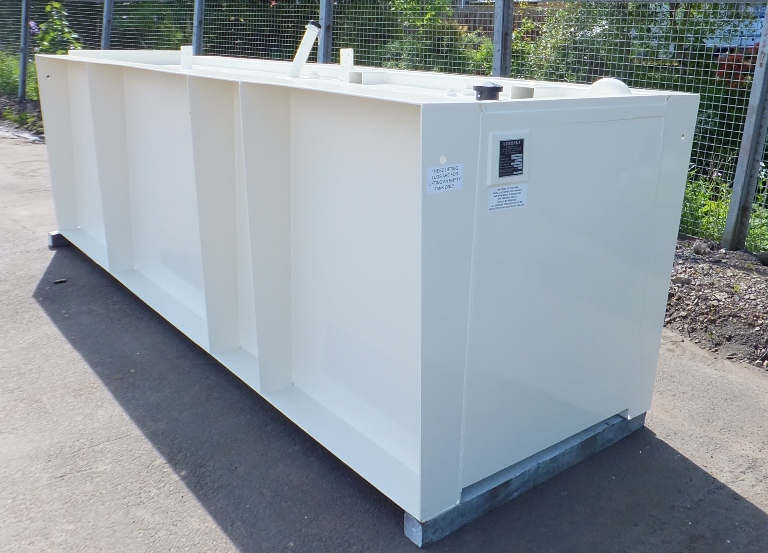

3 000 litre base Tank 3 000 LITRE BASE TANK ::
  • Design BS 799 Part 5 type J 1987.
  • 3.9 m long x 1.11m wide x 1.15m tall.
  • Dry weight 1.7 Ton - Wet Weight 4.3 Ton.
  • 6mm Side channels fitted support gussets .

Top of Page

CANOPY SETS
13 000 LITRE STRUCTURAL BASE TANK FOR DROP OVER CANOPY::
  • Design BS 799 Part 5 type J 1987.
  • 7.0m long x 3.0m wide x 748mm tall.
  • Dry weight 6.0 Ton - Wet weight 17.0 Ton.
  • Chequered plate roof to act as floor inside canopy.
  • Fully welded angle iron frame to position canopy.
  • Angle iron frame prevents water ingress.

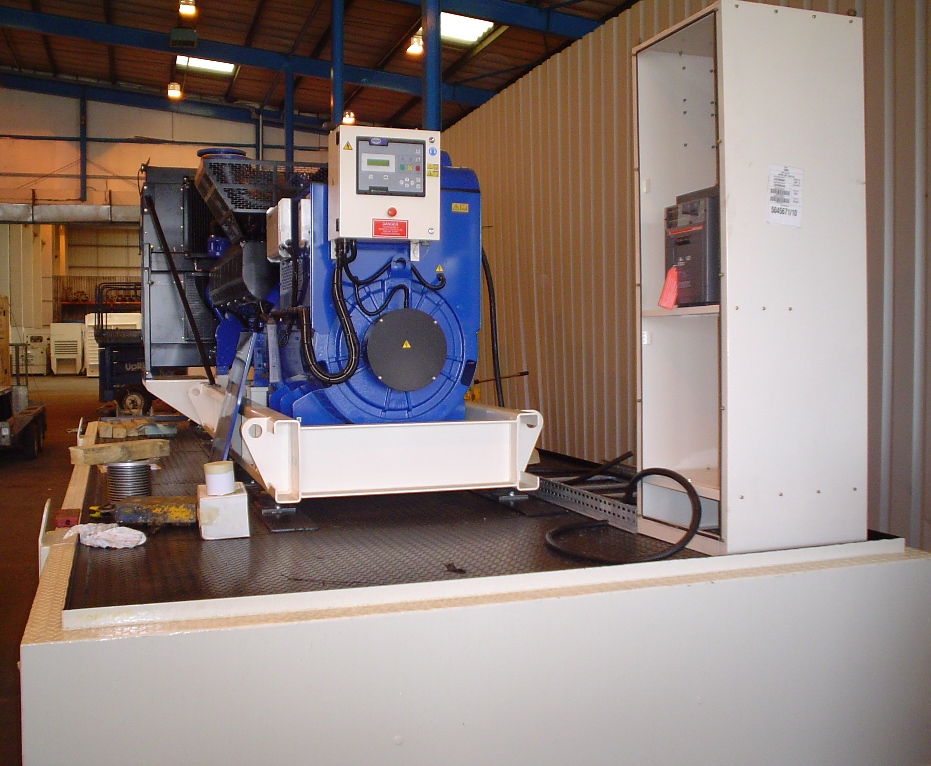

13 000 Ltr Slab tank
  STRUCTURAL BASE TANK
  • Any size available to suit any engine
  • Supplied with or without pre drilled mounting plates
  • Fill point cabinets available
  • Fuel Polishing sysytems available
  • Can be isulated between tank & bund to cut down noise
  • Tank Skid mounted to prevent base rusting
  • Painted to suit your canopy

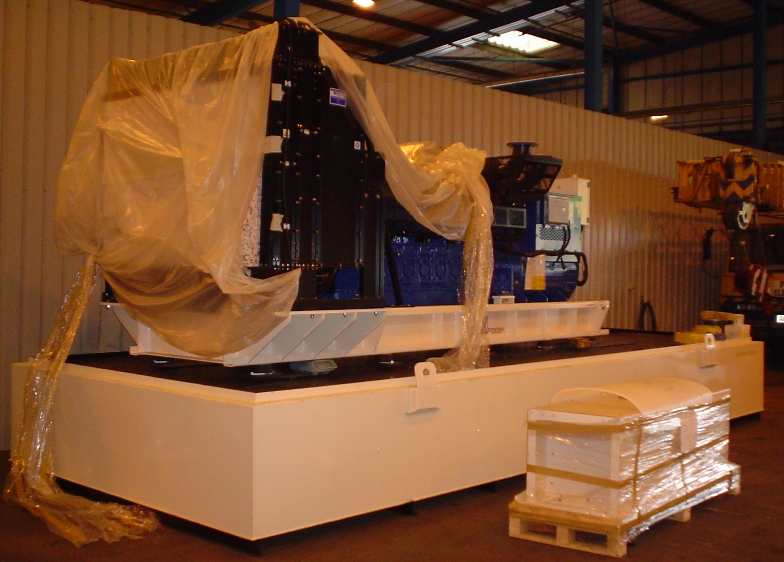

13 000 Ltr Slab Tank
  DETAIL
  • Left: - View shows engine and available walking space before canopy is fitted.

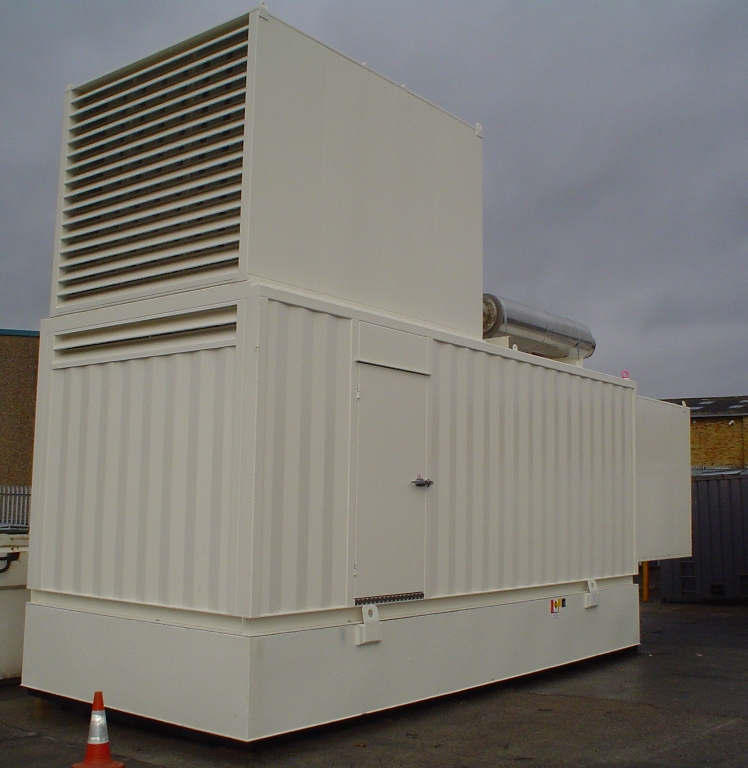

  • Right: - View shows canopy fitted and finished product
Finished Set


STRUCTURAL BASE TANKS
26 000 LITRE STRUCTURAL BASE TANK FOR CONTAINER::
  • Design BS 799 Part 5 type J 1987.
  • 10.0m long x 3.4m wide x 856mm tall.
  • Dry weight 12.0 Ton - Wet weight 34.5 Ton.
  • Fill Built in Point Cabinet.
  • Access Hatch to bund area for maintenance
  • Suitable for 40 Tonne or larger containers

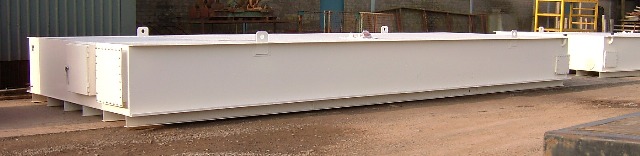

Structural Tank
  DETAIL
  • Left: - View showing full slab tank.

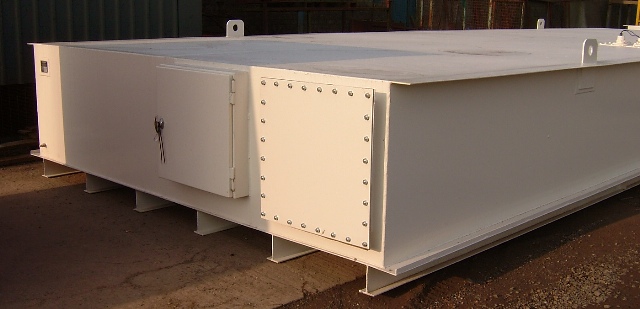

  • Right: - View showing Fill Point Cabinet
Fill Point Cabinet



30 000 LITRE STRUCTURAL BASE TANK FOR CONTAINER - BUILT IN FUEL POLISHING SYSTEM::
  • Design BS 799 Part 5 type J 1987.
  • 14.0m long x 3.0m wide x 856mm tall.
  • Dry weight 13.0 Ton - Wet weight 40.0 Ton.
  • Fill Point Cabinet.
  • Fuel Polishing.
  • Fully Bunded to Enviroment Agency requirements

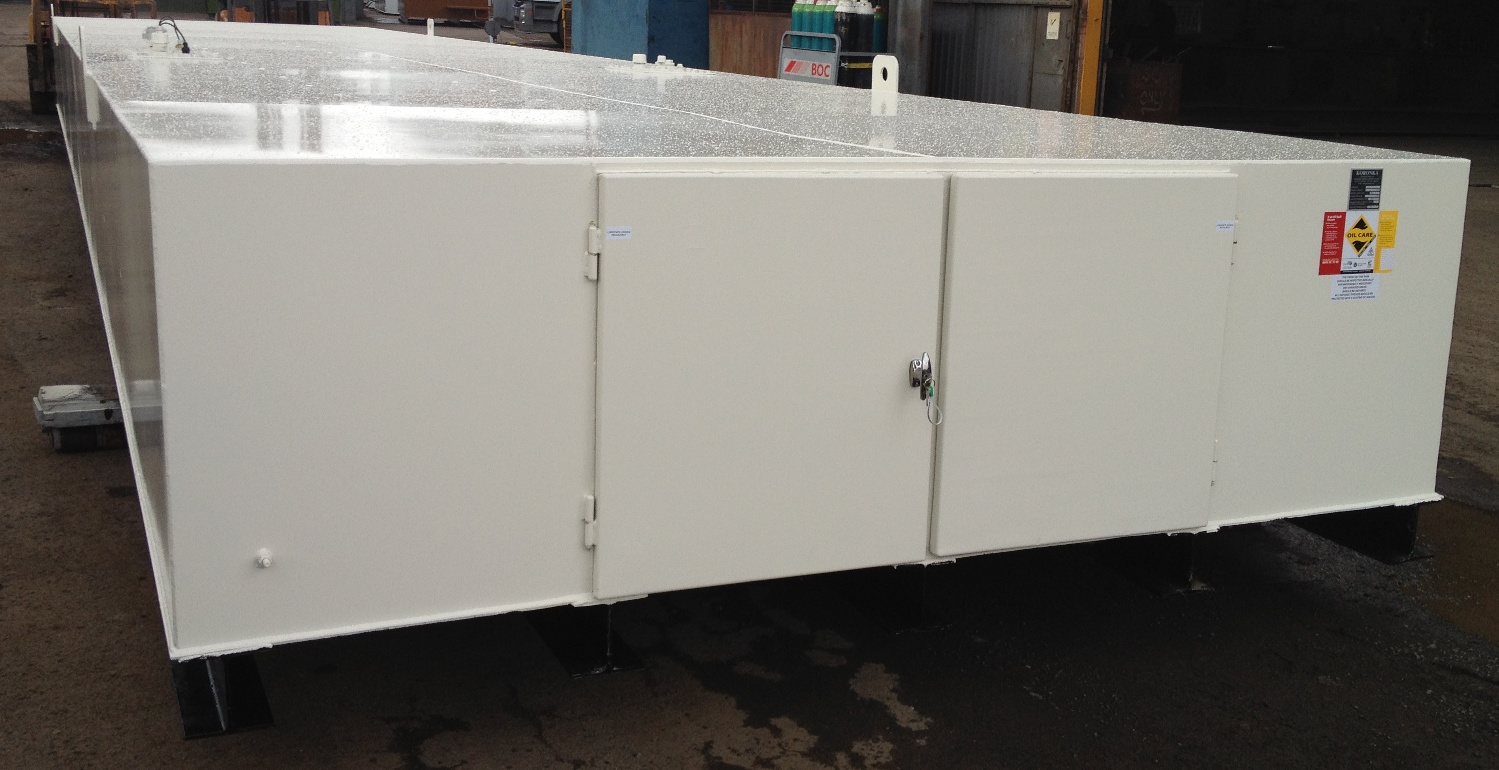

Structural Tank
  DETAIL
  • Left: - View showing full slab tank.

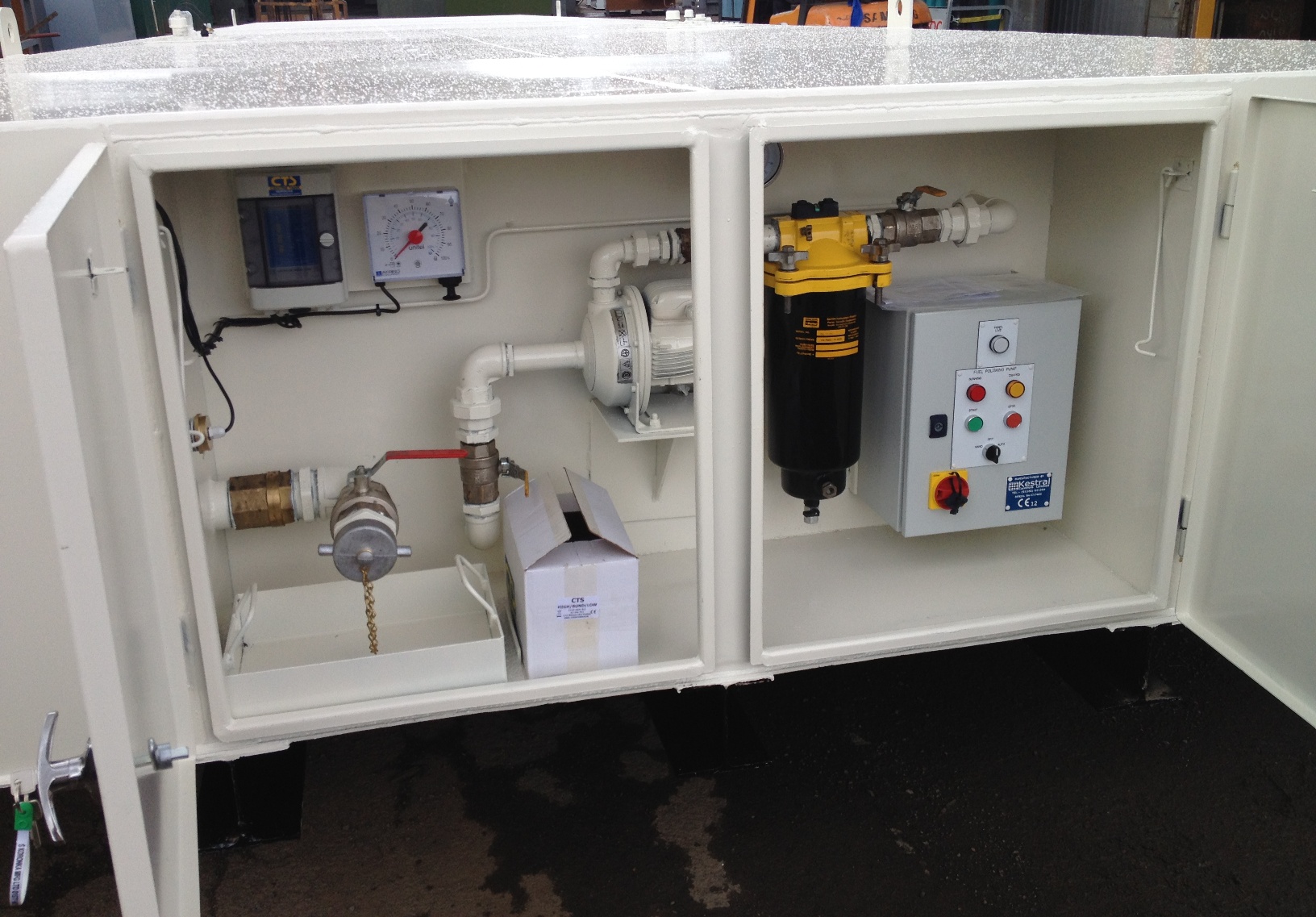

  • Right: - View showing Fill Point Cabinet with built in fuel polishing unit
Fill Point Cabinet

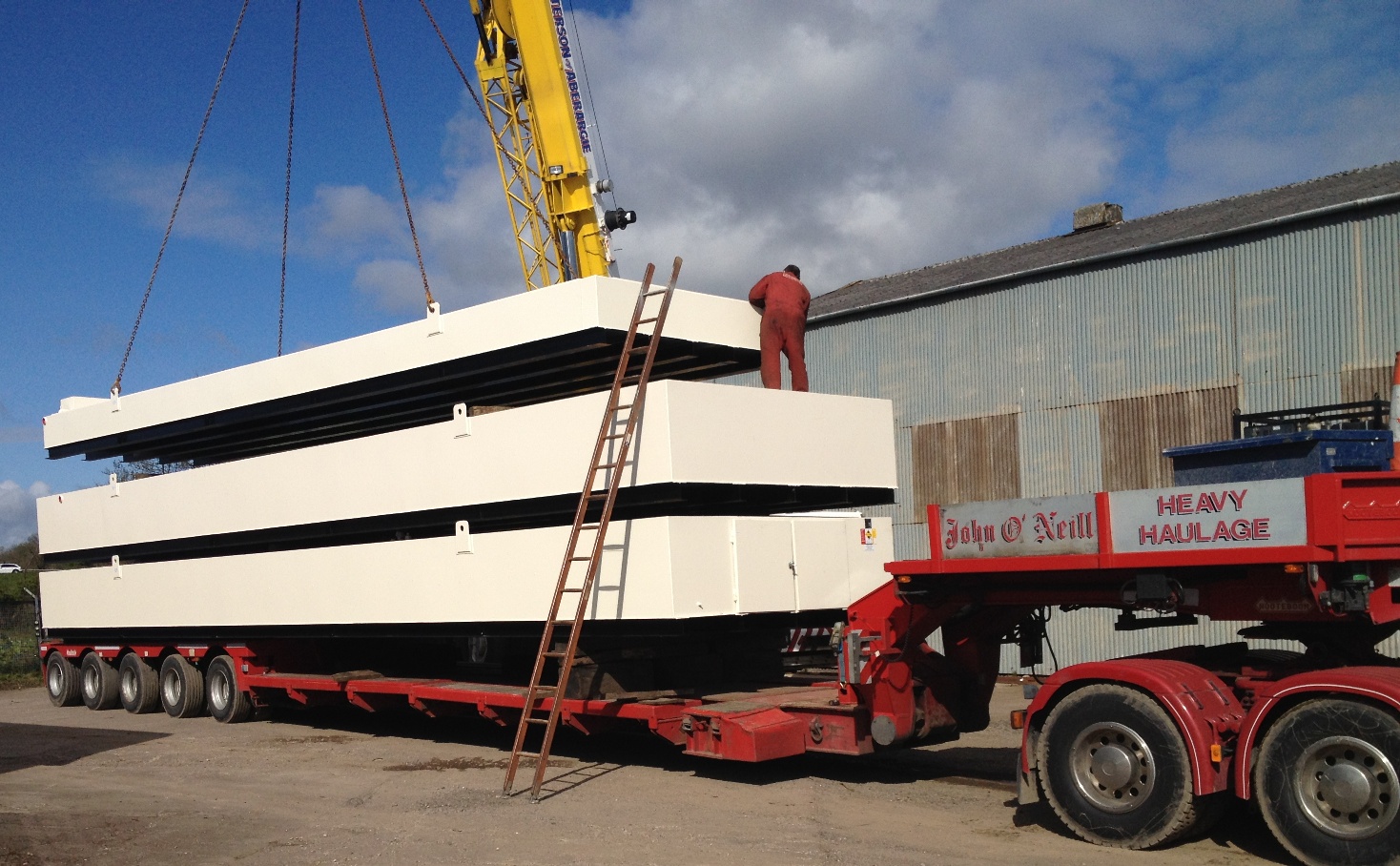

Tanks being loaded
  FUEL POLISHING UNIT SPEC
  • Hydrocarbon Filter Vessel
  • 40mm Inlet and Outlet ports
  • Water Sight Glass & drain facility
  • Interior half epoxy coated
  • Max capacity of 57 L/per Min
  • High quality single or 3 phase pump available
  • Lock shield valve fitted on discharge side of pump to regulate flow through filter
  • Built in Control panel for control of pumps
  • Fitted timer in control panel to automatically clean fuel



Top of Page
