KORONKA'S BASIC DESIGN RANGE OF TANKS

CLEAN OIL DISPENSING TANKS::

• Design BS 799 Part 5 type J 1987.
• Fitted hand pump for filling up drums, jugs and cans.
• Fitted float type contents gauge.
• Fitted 50mm fill point c/w dust cap and chain.
• Skid mounted allows tank to be move easily by fork lift.
• Fitted lifting lugs for moving between sites or around the yard.
• Fitted spare connections for future requirements.
• All connections taken from the roof - no pipe work through the bund wall.

CLEAN OIL STORAGE TANKS ::

• Design BS 799 Part 5 type J 1987.
• As above fitted gauge, lift lugs and skid mounted.
• Can be fitted electric, hand or air pump {as shown}.
• Earth lug fitted as standard.

WASTE OIL STORAGE TANKS::

• Design BS 799 Part 5 type J 1987.
• As above fitted gauge, lift lugs and skid mounted.
• Fitted hatch with mesh basket welded solid so no rags, or large objects can be poured into the tank.
• Fitted 50mm suction tube from base of tank to cap and chain for empting tank.

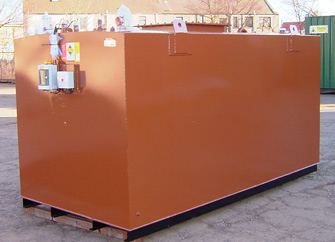

6000 Ltr CLEAN OIL STORAGE TANKS ::

This simple design of tank incorporates all the requirements of the Environment Agency in meeting the bunding legislation. The tank is filled from the top so there can be no spillage cause by an offset fill pipe. The tank is vented to the bund & the bund vented to atmosphere. The bund is skid mount on 100mm high channels giving good ventilation under the bund making sure it is dry at all times to stop material rusting. Gauges and alarms are mounted on one end but can be position anywhere to suit your requirement. A large 600mm square manway is also provided for access into the tank should it be required for maintenance. Tank can be used for any application that requires the storage of oils.

• Design BS 799 Part 5 type J 1987.
• Fitted Hydrostatic Contents Gauge
• Fitted Over Under Bund Alarm c/w volt free contacts
• Fitted suction pipe c/w angle check valve
• Fitted dry break connectors for quick release on secondry feed & return
• Fitted RIS Stop over fill valve.

Capacities Available:-

  500 Ltr :-   700mm long x 1000mm wide x 1000mm tall
1000 Ltr :-  1025mm long x 1000mm wide x 1250mm tall
1500 Ltr :-  1200mm long x 1250mm wide x 1250mm tall
2000 Ltr :-  1550mm long x 1250mm wide x 1250mm tall
2500 Ltr :-  1950mm long x 1250mm wide x 1250mm tall
3000 Ltr :-  2300mm long x 1250mm wide x 1250mm tall
3500 Ltr :-  2650mm long x 1250mm wide x 1250mm tall
4000 Ltr :-  2350mm long x 1525mm wide x 1250mm tall
4500 Ltr :-  2750mm long x 1525mm wide x 1250mm tall
5000 Ltr :-  2450mm long x 1830mm wide x 1250mm tall


OTHER SIZES AVAILABLE PLEASE ASK A MEMBER OF OUR SALES TEAM
